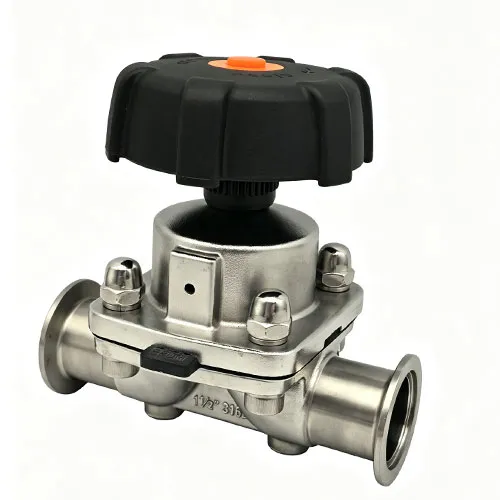

Sanitary tri clamp manual diaphragm valve

Our sanitary tri clamp manual diaphragm valve is built from premium 316L stainless steel with tri-clamp quick ends for fast pipeline assembly. Equipped with heavy-duty handwheel, this hygienic diaphragm valve works without air or power supply. Choose EPDM or PTFE diaphragm to handle repeated CIP and SIP cycles. It has smooth inner surface without dead zones to avoid cross-contamination. Ideal for food, beverage, pharmaceutical and biotech production. Contact us for datasheets and bulk pricing.

Contáctanos

Consulta en línea

E-mail：1625959864@qq.com

Introducción detallada

Sanitary tri clamp manual diaphragm valve | 316L Stainless Steel Hygienic Valve

1. Introduction to Our Sanitary Tri Clamp Manual Diaphragm Valve

If you are looking for a reliable, easy-to-install, and low-maintenance hygienic valve for your fluid control pipeline, our sanitary tri clamp manual diaphragm valve is exactly what you need. As a professional valve manufacturer based in Wenzhou Longwan—China’s core valve industrial cluster with complete supply chain support—we at Zhejiang Fengdu Technology Co., Ltd. have focused on fluid control component production for years. Even though we were founded in 2020, our core production team has decades of practical experience in designing and manufacturing sanitary valves for industrial hygienic pipelines.

This 316L stainless steel tri clamp manual diaphragm valve is one of our best-selling hygienic fluid control products. Unlike complex pneumatic or electric valves that rely on external power sources, this manual diaphragm valve runs purely on manual operation. It is designed to solve the pipeline control problems in environments where air supply, electricity, or automated systems are unavailable or inconvenient to install. From small factory pipeline renovations to large-scale new production line construction, this sanitary tri clamp manual diaphragm valve delivers stable, hygienic, and cost-effective fluid control performance.

We specifically engineered this valve for strict hygienic industrial scenarios. Every detail from the internal pipeline structure to the surface polishing and diaphragm material selection follows international hygienic standards. It effectively avoids material residue, bacterial growth, and cross-contamination, which are the most common pain points in food, beverage, pharmaceutical, and biotech production pipelines. In simple terms, this is a durable, easy-to-use, zero-dead-zone hygienic valve suitable for all sanitary fluid control systems.

2. How Does a Sanitary Tri Clamp Manual Diaphragm Valve Work?

You don’t need professional engineering knowledge to understand how our sanitary tri clamp manual diaphragm valve works. Its working principle is simple, straightforward, and highly practical for daily industrial operation. The entire valve relies on a heavy-duty manual handwheel to control the opening and closing of the fluid pipeline, with no air compressor, power cord, or electronic controller required.

Here is the step-by-step working process in plain language: When you rotate the handwheel clockwise, the internal valve stem pushes the hygienic diaphragm down to closely fit the valve seat, completely blocking the fluid passage and closing the pipeline. When you rotate the handwheel counterclockwise, the valve stem lifts up, the diaphragm resets, and the internal pipeline opens up to allow smooth fluid flow.

The core of its stable operation lies in the flexible and durable diaphragm. We adopt food-grade EPDM and PTFE diaphragm materials, which can fit the valve body perfectly without gaps. This tight fitting design eliminates pipeline dead zones completely. Whether you are transporting liquid materials, semi-fluid raw materials, or conducting regular pipeline cleaning, no residue will hide in the valve interior. Compared with ball valves and butterfly valves that have complex internal structures and easy-to-stain dead corners, our manual diaphragm valve’s working mechanism is simpler and more hygienic.

Another user-friendly design is the tri clamp connection structure. The standard tri clamp interface allows workers to install, disassemble, or replace the valve in minutes with only a simple clamp tool. No welding, no cutting, no complicated pipeline modification work. This working and installation logic makes it the top choice for temporary pipelines, frequently maintained pipelines, and non-powered industrial sites.

3. Core Features of Our 316L Tri Clamp Manual Diaphragm Valve

We have optimized every feature of our sanitary tri clamp manual diaphragm valve based on actual industrial usage scenarios. We don’t make fancy redundant designs; every function is tailored to solve real production problems for our customers. Below are the most practical core features that distinguish our valve from ordinary industrial diaphragm valves.

First, full 316L stainless steel valve body construction. Unlike ordinary 304 stainless steel valves that are prone to corrosion in acidic, alkaline, and high-temperature cleaning environments, our 316L stainless steel body features excellent corrosion resistance and oxidation resistance. It can withstand long-term high-temperature sterilization and chemical cleaning without rusting, deforming, or damaging the surface. This ensures long-term stable operation in strict hygienic production environments.

Second, dual optional hygienic diaphragm materials. We provide two mainstream industrial hygienic diaphragm options: EPDM and PTFE. Both materials are food-grade and pharmaceutical-grade compliant, supporting repeated CIP cleaning and SIP high-temperature sterilization. You can choose the matching diaphragm according to your production medium and working temperature, realizing targeted fluid control and extending the valve service life.

Third, zero dead zone internal polishing design. The internal bore of the valve body is smooth and seamless, with no concave corners or gaps where materials can accumulate. After each material transmission and pipeline cleaning, there is almost no residue left inside the valve, completely avoiding cross-contamination between different batches of production materials.

Fourth, tool-free fast tri clamp installation. The universal tri clamp quick connection standard fits most industrial sanitary pipeline specifications. Workers can complete installation and disassembly quickly, greatly saving construction time and labor costs for pipeline installation and maintenance.

Fifth, pure manual power-free operation. The robust heavy-duty handwheel is wear-resistant and non-slip, supporting flexible on-off control. It works perfectly in workshops, clean rooms, and field sites where power and air supply are inaccessible, with zero operating energy consumption and extremely low failure rate.

4. Technical Advantage Comparison: Our Valve vs Ordinary Manual Diaphragm Valves

Many customers ask us why our sanitary tri clamp manual diaphragm valve performs better than ordinary low-priced diaphragm valves on the market. We have sorted out intuitive comparison data based on ISO 2037 sanitary valve industry standards and actual factory test reports, so you can clearly see our technical advantages in material durability, hygienic performance, and application adaptability.

Performance Parameter	Our Sanitary Tri Clamp Manual Diaphragm Valve	Ordinary 304 Stainless Steel Manual Diaphragm Valve	Data Source
Valve Body Material	316L Medical & Food Grade Stainless Steel	304 Ordinary Industrial Stainless Steel	ISO 2037 Sanitary Stainless Steel Standard
CIP Cleaning Cycle Resistance	≥1000 Times No Deformation & Leakage	≤500 Times Easy Aging & Leakage	Factory Third-Party Cleaning Test Report
Working Temperature Range	-20℃ ~ 150℃	-10℃ ~ 120℃	ISO 15765 Industrial Valve Temperature Standard
Internal Dead Zone	0 Dead Zone, Smooth Seamless Bore	Visible Dead Corners, Easy Residue Buildup	Hygienic Pipeline Microscopic Inspection Standard

From the comparison data above, you can easily find that our valve has obvious advantages in corrosion resistance, high and low temperature resistance, and hygienic stability. Although the cost is slightly higher than ordinary 304 valves, it can greatly reduce the frequency of valve replacement, pipeline cleaning, and failure maintenance in long-term use, effectively lowering your overall production and operation costs.

5. EPDM vs PTFE Diaphragm: Material Selection Guide

The diaphragm is the core wearable part of the sanitary tri clamp manual diaphragm valve, and choosing the right diaphragm material directly determines the valve’s service life and production applicability. We provide two mainstream industrial hygienic diaphragm materials, and we have sorted out a detailed comparison table based on FDA food contact material standards to help you make the most suitable choice according to your production scenarios.

Diaphragm Material	Applicable Temperature	Applicable Medium	Core Advantages	Data Source
EPDM	-20℃ ~ 120℃	Water-based liquid, beverage, dairy products, low-concentration sugar liquid	Super elasticity, good fitting performance, low cost, wear-resistant	FDA 21 CFR 177.2600 Food Grade Standard
PTFE	-20℃ ~ 150℃	Acid-base liquid, pharmaceutical solvent, high-purity chemical liquid	Strong corrosion resistance, high temperature resistance, anti-aging, sterile	FDA 21 CFR 177.1550 PTFE Material Standard

In actual production, we recommend EPDM diaphragms for most food and beverage production lines with conventional water-based media. For pharmaceutical, biotech, and fine chemical production lines that require high temperature sterilization and contact with corrosive media, PTFE diaphragms are the best choice. Both materials fully support daily CIP online cleaning and SIP high-temperature steam sterilization, meeting the most stringent industrial hygienic requirements.

6. Wide Industrial Applications of Sanitary Tri Clamp Manual Diaphragm Valve

Thanks to its excellent hygienic performance, stable manual control, and convenient installation, our sanitary tri clamp manual diaphragm valve is widely used in almost all industries that require hygienic fluid control pipelines. It is not limited by power supply and air source, so it can adapt to various complex production environments. Below are its most mainstream application fields.

Food and Beverage Industry: This is the most common application scenario. It is suitable for pipeline control of dairy products, fruit juice, beer, beverage, edible oil, and food seasoning production. The zero-dead-zone design ensures no material residue, avoids bacterial breeding, and guarantees food production safety and batch stability.

Pharmaceutical and Biotech Industry: Pharmaceutical production has extremely strict requirements on pipeline hygiene and sterility. Our 316L stainless steel valve body and FDA-certified diaphragm materials fully meet pharmaceutical GMP production standards. It is widely used in the pipeline control of liquid medicine, biological reagents, sterile water, and vaccine production lines.

Daily Chemical and Fine Chemical Industry: For the production of skin care products, detergents, and high-purity chemical reagents, this manual tri clamp diaphragm valve can resist weak acid and weak base corrosion, maintain stable fluid control, and avoid product cross-contamination caused by pipeline residue.

New Pipeline Renovation and Small Factory Projects: Many small and medium-sized factories do not have complete pneumatic and electric automatic control systems. Our power-free manual valve perfectly solves this problem. It is also the preferred valve for temporary test pipelines and later pipeline maintenance and renovation due to its fast disassembly and replacement features.

7. Our Manufacturing Process & Quality Inspection Standards

As a professional Wenzhou sanitary valve manufacturer, we know that the quality of hygienic valves directly affects the customer’s production safety and product qualification rate. Therefore, we have always implemented strict manufacturing processes and full pre-shipment inspection for every sanitary tri clamp manual diaphragm valve we produce.

In terms of manufacturing technology, we adopt integral forging molding for the 316L stainless steel valve body. Different from welded valve bodies that are easy to crack and leave gaps, integral forging makes the valve body one-piece seamless, with stronger pressure resistance and no hidden sanitary dead corners. For the internal and external surface of the valve, we support customized precision polishing services. We can provide different polishing roughness standards according to customer needs, from conventional industrial polishing to high-precision mirror polishing, fully adapting to different hygienic grade requirements.

In terms of quality inspection, every valve will go through a complete inspection process before shipment. Our inspection items include appearance polishing inspection, dimensional precision detection, air tightness test, pressure resistance test, and high-temperature cleaning simulation test. We strictly follow ISO sanitary valve standards to screen defective products, ensuring that every valve delivered to customers has zero leakage, stable performance, and compliant hygiene.

Our factory is located in Wenzhou Longwan, China’s valve industry cluster. We enjoy complete industrial supporting resources, from raw material procurement to precision processing and finished product testing. This industrial advantage allows us to control product quality stably while controlling production costs, providing customers with high-cost-performance sanitary valve products and one-stop equipment procurement solutions.

8. Why Choose Zhejiang Fengdu Technology’s Manual Diaphragm Valve?

There are many manufacturers producing sanitary tri clamp manual diaphragm valves in the market, but we have always won long-term trust from customers with stable quality, professional service, and cost-effective pricing. Here are the core reasons why more industrial buyers choose us.

First, professional manufacturing experience and stable quality. Although our company was established in 2020, our core team has many years of experience in sanitary valve R&D and production. We are very familiar with the pain points of industrial pipeline use, and we optimize product design targeting actual usage problems, avoiding various quality defects of ordinary low-cost valves.

Second, customized service to meet personalized needs. We do not provide single standard products. We support customized surface polishing, size specification adjustment, and diaphragm material matching according to customers’ production line parameters and hygienic standards. Whether you need standard conventional valves or special customized products, we can meet your requirements.

Third, complete pre-shipment quality assurance. Unlike many manufacturers that only conduct random inspection, we implement 100% full inspection for all finished valves. Every product has passed multiple performance tests, so you don’t have to worry about on-site leakage, poor closing, or unqualified hygienic standards after installation.

Fourth, cost-effective and worry-free after-sales. Relying on the industrial cluster advantage of Wenzhou valve base, we save intermediate circulation links and provide customers with direct factory prices. At the same time, we provide professional technical support, including free technical datasheets, installation guidance, and bulk order preferential policies. For pipeline matching problems, our technical team can provide targeted solution support at any time.

9. Frequently Asked Questions (FAQ) About Sanitary Tri Clamp Manual Diaphragm Valve

We have sorted out the most frequently asked questions from global customers about our sanitary tri clamp manual diaphragm valves to help you solve doubts quickly and make a purchase decision faster.

Q1: Is this tri clamp manual diaphragm valve suitable for sterile production lines?A1: Absolutely yes. Our valve adopts 316L stainless steel body and FDA-certified EPDM/PTFE diaphragms, with zero dead zone internal structure. It supports repeated CIP and SIP sterilization, fully meeting GMP sterile production standards for food, pharmaceutical, and biotech industries.

Q2: Do I need professional tools and welding for installation?A2: No welding and no complex tools are needed. The standard tri clamp quick connection design only requires a common clamp tool to complete installation and disassembly, which greatly shortens pipeline construction time.

Q3: How to choose between EPDM and PTFE diaphragm?A3: Choose EPDM for conventional water-based, low-temperature, and low-corrosion media with lower cost and better elasticity. Choose PTFE for high-temperature sterilization, acid-base corrosive media, and high-purity sterile production scenarios for stronger durability.

Q4: What is the service life of this manual diaphragm valve?A4: Under standard working conditions and regular standardized cleaning, the valve body can be used for more than 5 years, and the diaphragm can be replaced separately according to usage wear, effectively reducing long-term replacement costs.

Q5: Can you provide bulk discount and custom service?A5: Yes. We provide exclusive bulk order quotations for wholesale customers, and support customized polishing, size, and packaging services. You can contact our team to get free technical datasheets and personalized quotes.

Get Your Custom Sanitary Tri Clamp Manual Diaphragm Valve Quote Today

If you are looking for high-quality, hygienic, and cost-effective sanitary tri clamp manual diaphragm valves for your new production line or pipeline renovation project, Zhejiang Fengdu Technology Co., Ltd. is your most reliable partner. We provide factory direct sales, full quality inspection guarantee, customized processing, and professional technical support. Feel free to contact us to obtain the latest product technical datasheets, detailed parameter lists, and favorable bulk order quotations!
